Features
Air Release Valve can quickly eliminate the air from the water.
All interior parts and the floating ball are made of stainless steel material.
Easily maintained without special tools.
Large rate of flow to release the air.
Features
Air Release Valve can quickly eliminate the air from the water.
All interior parts and the floating ball are made of stainless steel material.
Easily maintained without special tools.
Large rate of flow to release the air.

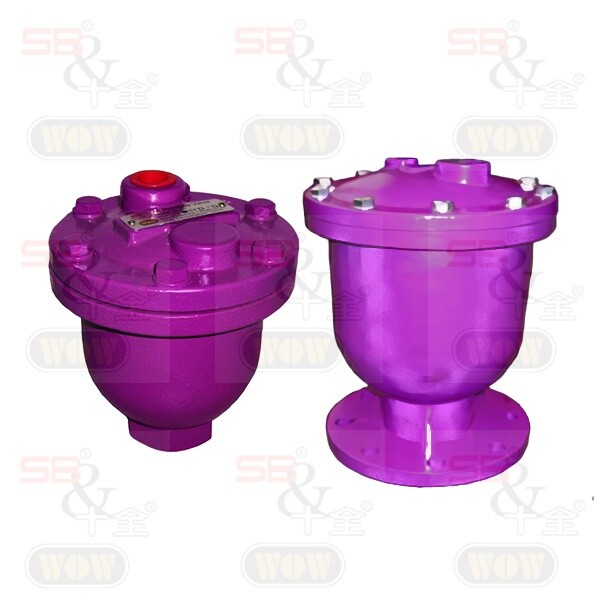

80-01 Air Release Valve can eliminate the air from the water pipes to reduce the noise, vibration caused by the air. It can also maintain the stable operation of the relevant control valve, advance the efficiency of the equipment and efficiently restrain watermarks or incrustations to be generated.

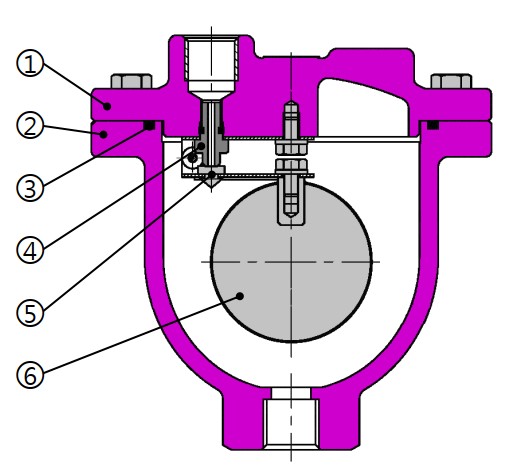

Material of Construction
|
No. |
Parts Name |
Material |
|
1 |
Cover |
Cast Iron / Ductile Iron |
|
2 |
Body |
Cast Iron / Ductile Iron |
|
3 |
Gasket |
EPDM / VITON |
|
4 |
Seat |
Stainless Steel |
|
5 |
Orifice Seal |
EPDM / VITON |
|
6 |
Float |
Stainless Steel |
|

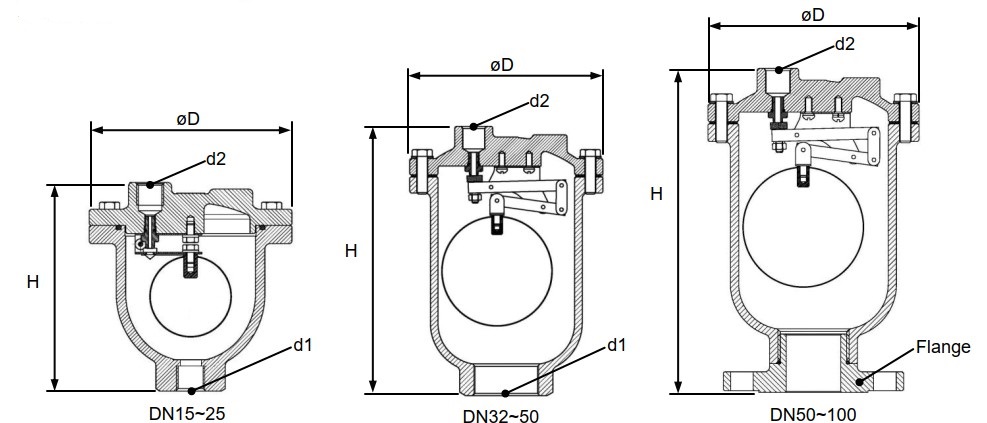

Valve Size |
D (mm) |
H (mm) |
d1 (PT) |
d2 (PT) |
|
Screw |
||||
|
DN15 |
125 |
145 |
1/2″ |
1/2″ |
|
DN20 |
125 |
145 |
3/4″ |
|
|
DN25 |
150 |
156 |
1″ |
|
|
DN32 |
178 |
250 |
1-1/4″ |
|
|
DN40 |
178 |
250 |
1-1/2″ |
|
|
DN50 |
178 |
250 |
2″ |
|
|
Flange (10K / PN16 / 150LB) |
||||
|
DN50 |
178 |
275 |
– |
1/2″ |
|
DN80 |
250 |
306 |
– |
|
|
DN100 |
250 |
306 |
– |
|
Note：The air release valve should be installed in a vertical position at high points in a pipe system.
Note：
※When installing the valve, strongly request to leave enough space for maintenance.
※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.
※When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.
Size：DN15~DN100
Max working pressure：10 bar
Max working temperature：100℃ / 220℃
※If need for very high working pressure, can be made to order.
Download
