Features
The valve adopts the OPEN design, hence water supply will not be affected due to instability in inlet pressure.
When the outlet pressure directly responds to the pressure control chamber to adjust setting pressure, the response is sensitive and adjustment can be very precise.
The valve’s body and cover are connected with bolts and nuts instead of thread. This kind of design brings easy and tight seal.
The outlet pressure can be directly read form the gauge port PT 1/8″.
Can be used individually, or can be used as a pressure reducing pilot.
Features
The valve adopts the OPEN design, hence water supply will not be affected due to instability in inlet pressure.
When the outlet pressure directly responds to the pressure control chamber to adjust setting pressure, the response is sensitive and adjustment can be very precise.
The valve’s body and cover are connected with bolts and nuts instead of thread. This kind of design brings easy and tight seal.
The outlet pressure can be directly read form the gauge port PT 1/8″.
Can be used individually, or can be used as a pressure reducing pilot.

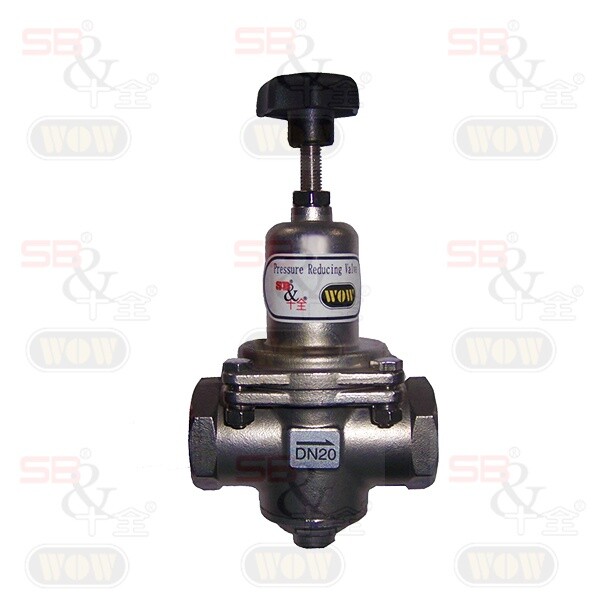

71 Direct-activated Pressure Reducing Valve

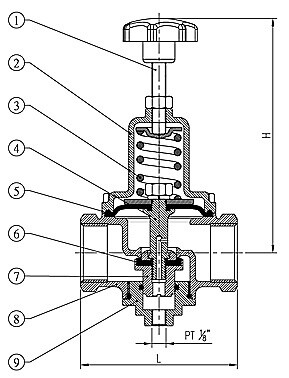

Dimension
|
Size |
1/2″ |
3/4″ |
1″ |
1-1/4″ |
1-1/2″ |
2″ |
|
L (mm) |
78 |
88 |
88 |
122 |
122 |
160 |
|
H (mm) |
130 |
140 |
140 |
200 |
200 |
220 |
|
CV |
2.6 |
5.2 |
5.4 |
15 |
16 |
26 |
Note：
※When installing the valve, strongly request to leave enough space for maintenance.
※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.
※When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.
Material of Construction
|
No. |
Parts Name |
Material |
|
1 |
Adjusting screw |
SUS |
|
2 |
Cover |
SUS |
|
3 |
Spring |
Carbon steel / SUS |
|
4 |
Stem |
SUS |
|
5 |
Diaphragm |
NBR / EPDM |
|
6 |
Gasket |
NBR / EPDM |
|
7 |
Disk |
SUS |
|
8 |
Body |
SUS |
|
9 |
Bottom cover |
SUS |
Size：1/2″~2″
Type：Direct acting diaphragm
Primarily controlled by：Downstream hydraulic pressure
Purpose：To prevent outlet pressure from exceeding a preset maximum level
Connections：Threaded end
Material：SUS304 / SUS316
Media available：Normal temperature water, Air, Gas
Max working temp.：100℃
Max working pressure：17.2 bar (250 psi)
Pressure adjustment range：0.5~6 bar (7~87 psi)、5~10 bar (72~145 psi)
※Additional ranges are available depending on your requirement.
1. Valve model number
2. Valve size
3. Working pressure
4. Adjustment range
Download
Catalog Of 71 Direct-activated Pressure Reducing Valve
