Features
Pressure storage equipment for pressurized liquids
Bladder absorb pulse pressure
No restrictions on installation direction
Features
Pressure storage equipment for pressurized liquids
Bladder absorb pulse pressure
No restrictions on installation direction
608 Pulsation Dampener
Material of Construction
|
No. |
Parts Name |
Material |
|
1 |
Protective Cover |
Ductile Iron |
|
2 |
Pressure Gauge |
– |
|
3 |
Charging Port |
Brass |
|
4 |
Ball Valve |
Brass |
|
5 |
Cover |
Ductile Iron / Stainless Steel |
|
6 |
Bladder |
NBR / EPDM / VITON |
|
7 |
Body |
Ductile Iron / Stainless Steel |

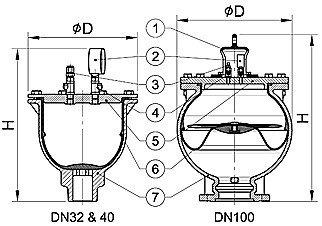

Dimension
|
Size (DN) |
H (mm) |
D (mm) |
Capacity (L) |
|
32* |
255 |
175 |
1 |
|
40* |
255 |
175 |
1 |
|
100 |
565 |
375 |
20 |
*No protective cover
Note：
※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.
Specification
Connection：Screw – PT , Flange – PN16/25、10/16K、150/300LB
Max working pressure：25 Bar
Max work temperature：100℃ / 220℃
