Type 47 Float Valve

Type 47 Float Valve

 Features

  • Accurate、repeatable water level control
  • Reliable self-hydraulic pressure control
  • Tightly shut off、reliable sealing
  • Completely automatic operation

 Features

  • Accurate、repeatable water level control
  • Reliable self-hydraulic pressure control
  • Tightly shut off、reliable sealing
  • Completely automatic operation

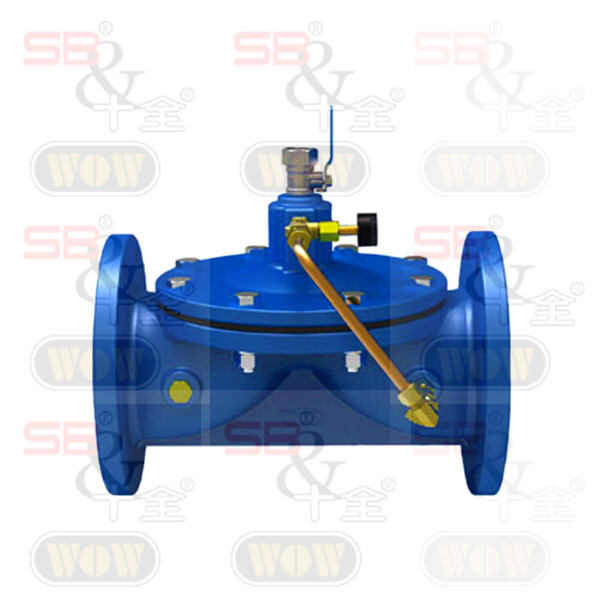

Type 47 Float Valve

Model 47-01 float valve is hydraulic pressure controlled and can maintain the water level at a stable level in the tank by using a pilot to control the diaphragm control valve. The float pilot is installed at the high-water level in the tank and connected with the main valve. When the water level is changed, Pilot will open or close the valve accordingly and maintain the water level in the range.

Schematic Diagram

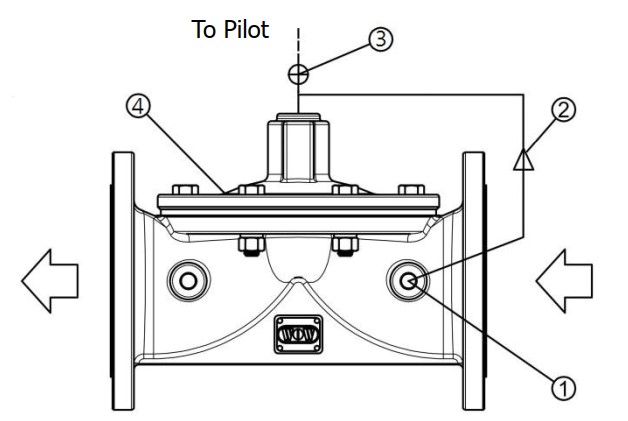

Accessories



   No. Parts Name
    1
Strainer
    2
Needle valve / Ball valve
    3
Ball valve
    4
Basic valve body



Dimension






Valve size
 50
65
80
100
125
 150
200
250
300
L (mm)
200
 220
285
307
370
390
 500
605
650
H (mm)
 87 109 115 137 142 164 183 244 258
Weight(kg)
7
 9
16
18
37
48
 83
120
140



Notice：
※When installing the valve, strongly request to leave enough space for maintenance. It is necessary to install the filter at the front section of the valve to avoid foreign materials to block the valve and affect the operation of the valve. ※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.
※When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.
Specification

Size：DN50~DN300 to flange

Flange：10K、16K、PN16、150LB

Temp. range：0℃~100℃，water

Working pressure over 0.7 bar

※Any size over DN350 or for very low pressure can be made to order.

Material


Body：Iron casting / Stainless steel

Accessory：Brass / Stainless steel

Fastener：Carbon steel / Stainless steel

Diaphragm：NBR / EPDM

Pilot Specification


Pilot：1/2″ float valve (Need to order separately)

Temp. range：0℃~100℃，water

Material：Brass / Stainless steel

When Ordering, Please Specify

1、Valve model number

2、Valve size

3、Pressure range

4、Connection type

5、Other optional parts

6、Working pressure
Typical Application

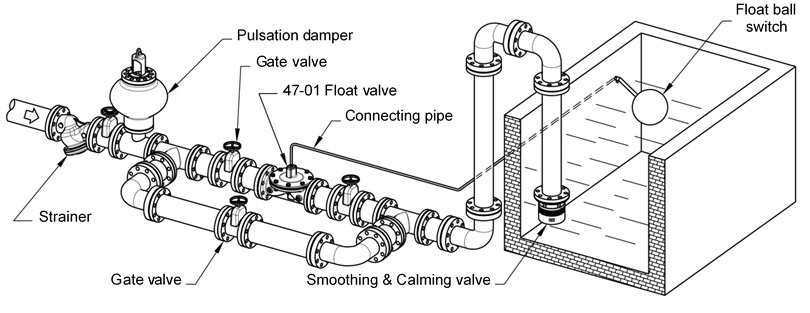

The installation of valve and float ball switch is as illustrated. The float ball switch is installed at the outlet of the connecting pipe, and fixed at the pre-set water level. The valve outlet must be far away from the float ball switch at least 5 meters away. Suggest to install a smoothing & calming valve at the outlet to avoid the wave of outlet water which will cause the valve tap opened and closed frequently and make vibration noise to shorten the valve life.
